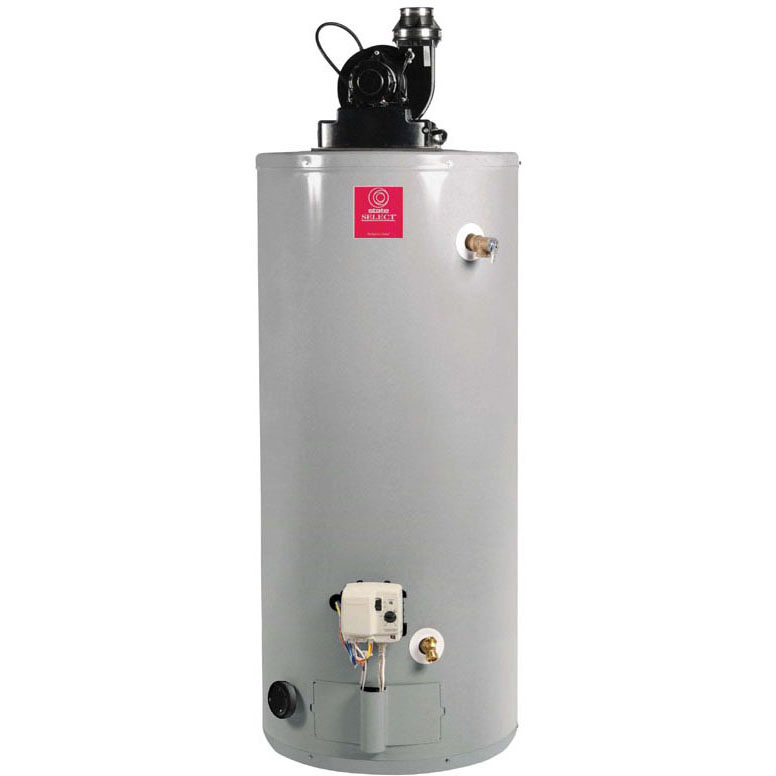

GS6 40 YRVITL State 40 Gallon 6 Year Power Vent Natural Gas Water Heater

STAGS640YRVITL MFG #: GS6 40 YRVITL
STAGS640YRVITL
  • Capacity: 40 Gallons
  • Manufacturer Name: State
  • Option: Tall
  • Type: Natural Gas
  • Warranty: 6 Years
  • Specifications
  • Documents
  • Description
  • Gas Water Heater
  • Type Tall
  • Applicable Standard ANSI Z21.10.1/CSA 4.1/ANSI Z21.10.3/CSA 4.3, AHRI, CSA
  • Inlet/Outlet Connection 3/4" Threaded Top x 3/4" Threaded Top
  • Gas Type Natural
  • Venting Type Power, Horizontal/Vertical
  • Draft Hood Outlet/Vent Size 2", 3", 4"
  • Input Supply Rating 76000 BTU/HR
  • Tank Dimensions 20" Diameter x 59-1/4" Height
  • Tank Height Including Draft Hood 68-1/2"
  • Tank Material Blue Diamond Glass Coating
  • Tank Capacity 40 Gallon
  • Tank Warranty 6 Year Limited
  • GPH Recovery 55.9 GPH at 90 Deg F
  • Ignition Type Robust, Reliable, Hot Surface
  • Drain Valve Details Ball Type, Enhanced-Flow, Tamper Resistant Solid Brass
  • Insulation Details 2" Thick Foam
  • Energy Saver Conformance No
  • Inclusions/Features Versatile Power Vent Design, Self-Cleaning Dip Tube, LED Control Light Display, Protected Sensor, Built-In Heat Traps, Side Connection Taps
  • Energy Factor 0.7
  • Working Pressure 150 PSI
  • Parts Warranty 6 Year Limited
Energy Star Qualified. All Models Feature an Exclusive 3-Position Rotatable Blower Outlet which Adds Flexibility. Protected Sensor that Detects the Presence of Flammable Vapors and Automatically Disables the Burner to Prevent Ignition. Air Intake Snorkel Elevates the Inlet Location of Combustion Air to Prevent Flammable Vapors from Entering the Sealed Combustion Chamber. Reduced NOx Emissions Comply with Air Quality Management District Regulations. Built-In Heat Traps on the Water Inlet and Outlet Reduce the Amount of Heat Lost through Piping. Dip Tube Reduces Lime and Sediment Buildup and Maximizes Hot Water Output, Made from Long-Lasting PEX Cross-Linked Polymer. Blue Diamond Glass Coating Provides Superior Corrosion Resistance Compared to Industry Standard Glass Lining. State-Of-The-Art Electronic Gas Control Provides More Precise Temperature Control. Drain Valve Uses a Standard Female Hose Fitting that Allows for Fast and Easy Draining During Maintenance. All Models Approved for Installation from Sea Level to 10100 Ft Elevation. 2" Pipe Vents Upto 50 Equivalent Feet, 3" Pipe Vents Upto 125 Equivalent Feet, 4" Pipe Vents Upto 180 Equivalent Feet. 6 Year Limited Tank and Parts Warranty.
